DOOR LATCHES AND BOLTS :: DOOR BOLTS

STRAPLESS SURFACE BOLT CDH 86, CDH 87

MATERIAL: Extruded Brass
FINISHES: Polished Brass
CDH 86
A = 4" (101.6)
CDH 87
A = 6" (152.4)

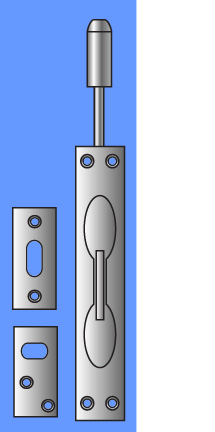

EXTENSION FLUSH BOLTS CDH 413A, CDH 413B

Length measured from centre of lever to end

of bolt when in retracted position.UL Listed.
CDH 413A
Zinc Die Cast
CDH 413B
BRASS FACE
FACE DIMMENSIONS
1"x6-3/4" (25.4x171.5)
BOLT 1/2" (12.7)
ROD BRACKET
3/4" (19.05)
KEEPER 1"x2-1/4" (22.2x57.2)
GUIDE
7/8" x 2-1/4" (22.2 x 57.2)
EXTENSION LENGTH
12" (304.8) STANDARD

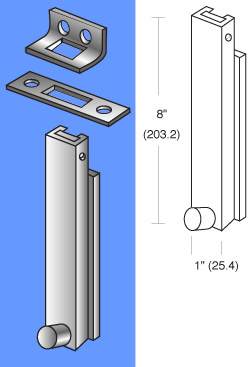

HEAVY DUTY SURFACE BOLT CDH 85

CDH 85
Top and Bottom
strikes included
FINISHES: All Standard
UL Listed

DUST PROOF STRIKE CDH 412

CDH 412
MATERIAL: Brass
Stainless Steel
BATON: Steel
FINISHES: All Standard
